How to Read a Forest Plot: Beginner’s Meta-Analysis Guide

Introduction

You open a systematic review, scroll past the methods, and land on a graph full of squares, horizontal lines, and one odd diamond at the bottom. It looks like something you need a statistics degree to decode. You don’t. Once you know what each part is doing, a forest plot turns into one of the fastest ways to judge evidence.

This guide walks through what a forest plot is, what every piece of it means, how to interpret the result, and the mistakes that trip up most beginners.

What Is a Forest Plot?

A forest plot is a graph that puts the results of several studies side by side, then adds one combined result underneath. You’ll see it in nearly every systematic review, usually right after the table of study characteristics.

The easiest way to think about it is as a summary dashboard. Rather than reading twelve papers and trying to hold all those numbers in your head, you get one image showing how each study turned out and what happens when you pool them.

A well-made forest plot answers three things quickly:

• Does the treatment or exposure actually do anything?
• Do the studies agree, or are they pulling in opposite directions?
• What’s the overall effect once everything is combined?

Why Learning to Read a Forest Plot Matters

Medical students run into forest plots in the journal club. Residents and clinicians look at them when deciding whether a new drug is worth prescribing. Researchers have to build them.

But the real reason to learn this is independence. Most readers skim the abstract, read the last line of the conclusion, and move on. That line was written by the authors, who have their own view of their data. When you can read the plot yourself, you can check whether the numbers actually support what they claimed, whether the effect is precise, and whether the studies agreed enough for a pooled figure to mean anything at all.

Anatomy of a Forest Plot

Study Names

The left column lists every study in the analysis, one per row. Labels are usually the first author’s surname plus the year: Ahmed 2019, Rodriguez 2021, and so on.

How they’re ordered varies. Some reviews sort by publication year, others by sample size or effect size. If the analysis is split into subgroups by drug dose, say, or by age band, you’ll see the studies clustered under headings, each cluster with its own small diamond.

Effect Size

Check the measure before you check anything else. You’ll usually be looking at one of these:

• Odds Ratio (OR) or Risk Ratio (RR): for yes-or-no outcomes: death, infection, readmission
• Hazard Ratio (HR): when timing matters, as in survival analysis
• Mean Difference (MD): when studies report the same continuous outcome in the same units, like systolic blood pressure in mmHg
• Standardized Mean Difference (SMD): when studies measure the same idea using different scales, such as two different depression questionnaires

Each of these answers a different question and none of them converts into another, medical statistics for beginners covers where each measure comes from and when it applies.

Every number on the plot means something different depending on which of these you’re dealing with. It takes two seconds to check, so check.

Squares

Each square marks a single study’s result, with the center of the square sitting at that study’s estimate.

Square size tells you how much that study contributes to the pooled figure. Bigger studies with tighter confidence intervals get bigger squares. A trial with 4,000 patients shows up as a large square; a 40-patient pilot shows up as a small one, even when both report an identical effect.

Horizontal Lines

The line running through each square is the 95% confidence interval, the range where the true effect probably sits.

Short line, precise estimate. Long line, a lot of uncertainty, usually because the study was small or had very few events. This matters more than beginners expect. Two studies can report exactly the same effect size and still deserve completely different levels of trust, based on nothing more than how long those lines are.

Precision and significance are separate questions, and conflating them is one of the most common errors in journal club, biostatistics matters from the start for exactly this reason.

Vertical Line of No Effect

Running down the middle of the plot is a vertical line. That’s the point where the treatment does nothing.

Where it falls depends on your measure:

• OR, RR, HR → the line sits at 1
• MD, SMD → the line sits at 0

And here’s the part you’ll use constantly: if a study’s confidence interval crosses that line, the result isn’t statistically significant.

The Diamond

The diamond at the bottom is the pooled estimate of every study combined into one figure.

Its center is the overall effect. Its width is the confidence interval around that effect. If any part of the diamond touches or crosses the line of no effect, the pooled result isn’t statistically significant.

Experienced researchers tend to look at the diamond first, then work back up through the individual rows to see which studies pushed it there.

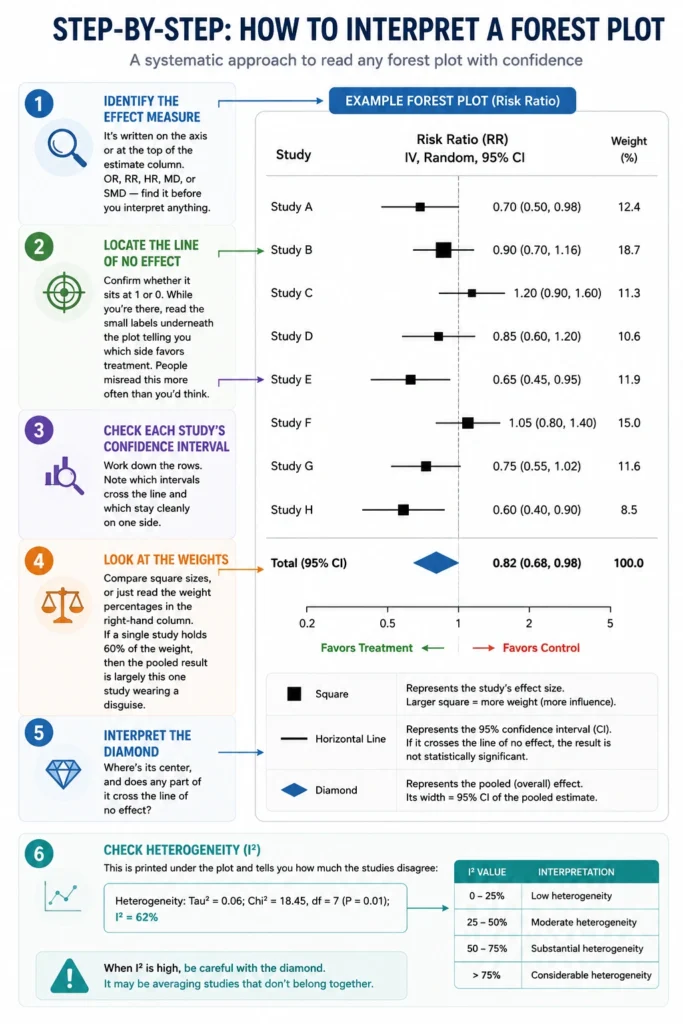

Step-by-Step: How to Interpret a Forest Plot

Step 1: Identify the effect measure

It’s written on the axis or at the top of the estimate column. OR, RR, HR, MD, or SMD, find it before you interpret anything.

Step 2: Locate the line of no effect

Confirm whether it sits at 1 or 0. While you’re there, read the small labels underneath the plot telling you which side favors treatment. People misread this more often than you’d think.

Step 3: Check each study’s confidence interval

Work down the rows. Note which intervals cross the line and which stay cleanly on one side.

Step 4: Look at the weights

Compare square sizes, or just read the weight percentages in the right-hand column. If a single study holds 60% of the weight, then the pooled result is largely that one study wearing a disguise.

How much weight each study carries depends on the model. Fixed-effect versus random-effects meta-analysis explains why the same data can produce two different sets of weights.

Step 5: Interpret the diamond

Where’s its center, and does any part of it cross the line of no effect?

Step 6: Check heterogeneity (I²)

This is printed under the plot and tells you how much the studies disagree:

• 0 to 25%: low
• 25 to 50%: moderate
• 50 tot 75%: substantial
• Over 75%: considerable

When I² is high, be careful with the diamond. It may be averaging studies that don’t belong together.

Heterogeneity is also what decides your analysis model, not just how you read the result, how to write a systematic review and meta-analysis covers where that decision belongs in the workflow.

Common Mistakes Beginners Make

Reading only the p-value: It tells you whether an effect probably exists. It says nothing about how big that effect is or whether it helps anyone.

Skipping the confidence intervals: The width of the interval carries as much information as the estimate sitting in the middle of it.

Mixing up statistical and clinical significance: A drug can drop systolic blood pressure by 1.5 mmHg with a beautiful p-value and still be worthless at the bedside.

Ignoring heterogeneity: Pooling studies that sharply disagree gives you an average that describes none of them accurately.

Assuming big squares mean good studies: Square size is about statistical weight, not quality. A large, badly designed trial still gets a large square.

Not checking the effect measure: Read an odds ratio as though it were a mean difference and your entire interpretation goes sideways.

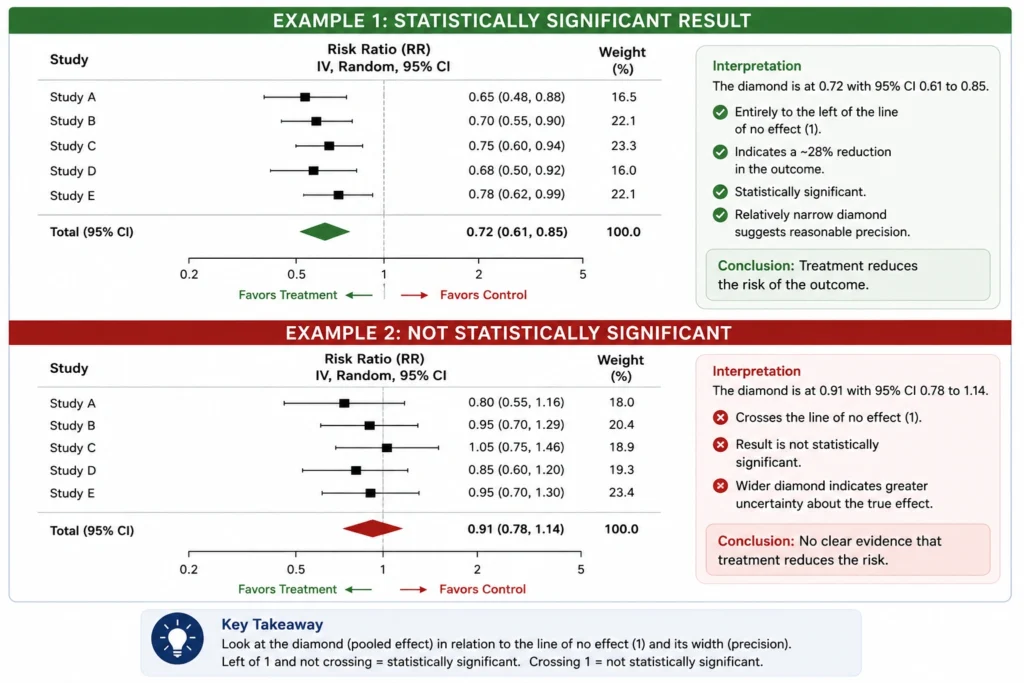

Quick Interpretation Example

Picture a plot using risk ratios. The diamond sits at 0.72, interval 0.61 to 0.85, sitting entirely to the left of the line of no effect.

That means roughly a 28% reduction in the outcome, statistically significant, and reasonably precise given how narrow the diamond is.

Now a second plot. The diamond is at 0.91, interval 0.78 to 1.14. It crosses the line, so the result isn’t statistically significant  and the wider spread tells you that there’s real uncertainty about where the truth lies.

Key Takeaways

•  Each square is one study, sized by its statistical weight.
• The horizontal lines are 95% confidence intervals.
• The vertical line is the line of no effect: 1 for ratios, 0 for differences.
•  The diamond is the pooled result of all studies combined.
•  I² tells you how consistent those studies actually were.
•  Statistical significance alone is never enough. Clinical relevance and study quality matter just as much.

Frequently Asked Questions

Q1. What does the diamond represent in a forest plot?

The diamond is the pooled estimate of every included study combined into a single result. Its center marks the overall effect, and its width shows the 95% confidence interval around it.

Q2. What is the line of no effect in a forest plot?

It’s the vertical reference line marking the point where the intervention makes no difference. For odds ratios, risk ratios, and hazard ratios, it sits at 1. For mean differences and standardized mean differences, it sits at 0.

Q3. How do confidence intervals affect interpretation?

They tell you how precise the estimate is. A narrow interval means you can be fairly confident about the result. A wide one means the true effect could sit almost anywhere across that range, so the finding needs to be read with caution.

Q4. What does it mean if a confidence interval crosses the line of no effect?

The result isn’t statistically significant. The data are compatible with benefit, with harm, and with nothing happening at all, so you can’t claim the intervention worked.

Q5. What does I² mean in a forest plot?

I² measures heterogeneity that tells how much the study results differ beyond what chance alone would explain. Below 25% suggests the studies broadly agree. Above 75% suggests they don’t, and the pooled figure needs careful handling.

Q6. Can a forest plot show clinical significance?

No. It shows statistical results only. Whether an effect is large enough to change how you treat patients depends on clinical judgment, the outcome being measured, and the population in front of you.

Judging whether an effect matters clinically starts with understanding the study design behind it, study design in medical research covers what each design can and cannot tell you.
